Coating Business

Sheet/Film

General Hard Coating
EP-100 Series

Double/Single Side Hard Coating

With hard coating applied to the surface of transparent sheets, such as PMMA, PC, and PET, this product provides excellent transparency and durability.

Anti-Fog
EP-200 Series

Anti-Fog

It is coated on the surface of transparent sheets such as PMMA, PC, and PET and prevents fogging caused by differences in temperature or humidity.

Anti-Glare (Matte)
EP-300 Series

Anti-Glare

With anti-glare (matte) coating applied to the surface of transparent sheets, such as PMMA, PC, and PET, this product prevents flaring and fingerprint marking.

Anti-Static
EP-400 Series

Anti-Static

With anti-static coating applied to the surface of transparent sheets, such as PMMA, PC, PET, PVC, and ABS, this product prevents static electricity by reducing resistance on the panel surface. It can be used for a range of purposes, including equipment cover and semiconductor line cover.

Anti-Fingerprint
EP-600 Series

Anti-Finger

With anti-fingerprint coating applied to the surface of transparent sheets, such as PMMA, PC 2–3 layers, and PET, this product creates a contact angle close to 110 degrees. Along with an excellent pollution prevention effect, it ensures easy wiping of the surface and prevents fingerprint marking.

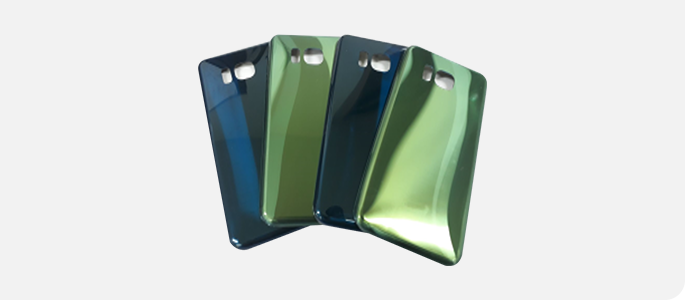

Composite Sheet for Glastic Back Cover
EP-SF00U

2Layer Bare Sheet

With the skin layer and the core made up of PMMA and PC, respectively, this product provides excellent exterior and quality and ensures convenient printing and packaging.

High Friction-Resistant Coating for Glastic Back Cover (2.5D)
EP-50LFU

2Layer Super Anti-Scratch Coating

With a forming coating applied to the PMMA surface, this product for 2.5D is specialized to scratch prevention and friction resistance.

Antibacterial Film

Anti-Virus Film

With hard coating applied to the clear-type surface, this product provides maximized antibacterial function along with improved durability in preparation for abrasion caused by frequent touching.

Escherichia coli(大肠菌)

Staphylococcus aureus(金黄色葡萄球菌)

Elevator button

Desks for schools, academies, etc.

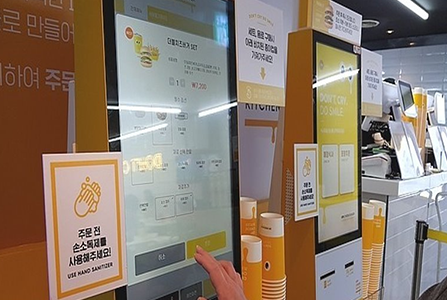

Kiosk located in the store

Colored Shatter Proof Film

Color Anti-Scattering Film

A colored hard coating is applied to general shatterproof (transparent) film and PET film. Attached to glass, it prevents shattering of the glass when broken. This product also adds colors or patterns to metallic surfaces.

LDPE PCR

Low-Density Polyethylene Post-Consumer Recycled Post-Consumer Recycled LDPE

Low-density polyethylene (LDPE) is the lightest type of polyethylene resin.
It has lower crystallinity (55% to 65%) and softening point (90 to 100℃) than HDPE

Excellent flexibility, extensibility, electrical insulation, transparency and ease of processing
Consistent air permeability, excellent chemical stability
Alkali resistance and general organic solvent resistance

Application: In the fields of packaging materials, agriculture, household goods and industrial products, etc. ex ) Plastic bags, shopping bags, wraps, agricultural films

Sheet/Film Material Data

	General Hard Coating	Anti-Fog	Anti-Glare (Matte)	Anti-Static	Anti- Fingerprint	High Friction-Resistant
Hardness	PMMA : 4H PC : HB	PMMA : 3H PC : HB	PMMA : 4H PC : HB	PMMA : 3H PC : HB	PMMA : 3H PC : HB	PMMA : 3H PC : HB
Transmittance	PMMA : 91% PC : 90%	90% or more	80~90% or more	90% or more	90% or more	90% or more
HAZE	Less than 0.5	Less than 1	5~30% Adjustable	Less than 0.5	Less than 0.5	Less than 0.5
DDP Printing	Excellent	X	X	X	X	X
Anti-Radiation Effect	X	Excellent	X	X	X	X
Surface Resistance	X	X	X	10^6 ~ 10^11	X	X
Contact Angle	-	-	-	-	110±5	110±5
Chemical Resistance	O	O	O	O	◎	◎
Friction Resistance	X	X	X	X	Excellent	Excellent (Steel wool friction #0000) by 5,000 times or more
